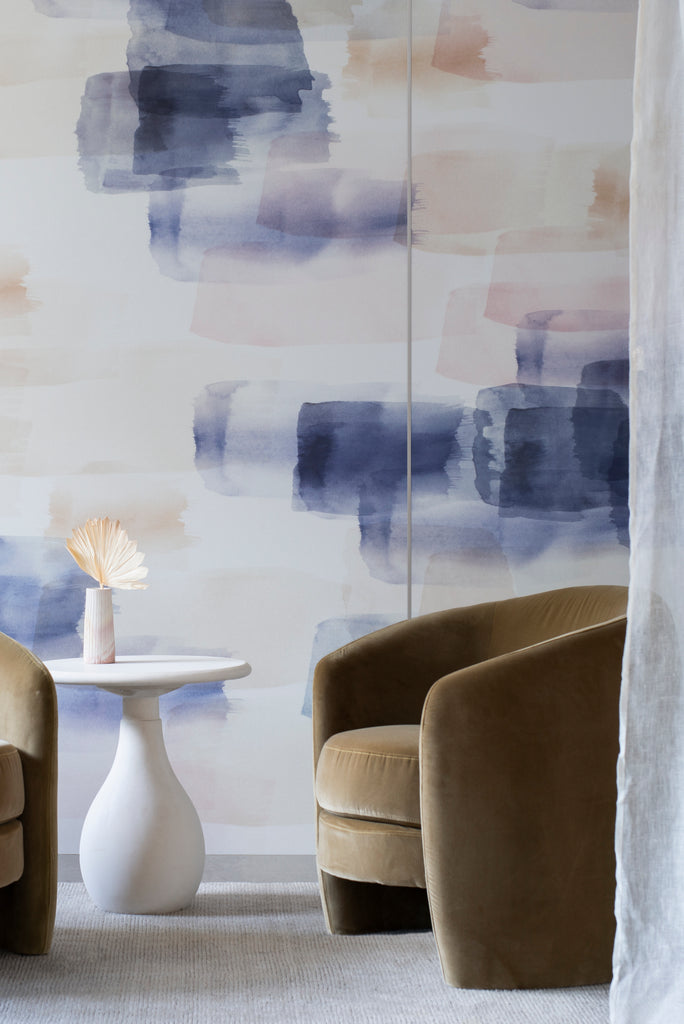

Acoustic panels, Lakeside design, in Daydream. Emma Hayes x Autex Acoustics®
Acoustic panels, Lakeside design, in Daydream. Emma Hayes x Autex Acoustics®
Acoustic panels, Lakeside design, in Daydream. Emma Hayes x Autex Acoustics®.
Acoustic panels sample, Lakeside design, in Daydream. Emma Hayes x Autex Acoustics®.
Acoustic panels diagram, Lakeside design, in Daydream. Emma Hayes x Autex Acoustics®.
Lakeside acoustic panels – daydream
Lakeside acoustic panels – daydream
Lakeside acoustic panels – daydream
Lakeside acoustic panels – daydream

Lakeside acoustic panels – daydream











    		Lakeside acoustic panels – daydream

Features

  • A versatile acoustic panel for walls and ceilings
  • Designed to reduce and control reverberated and echo noise

Specs

  • NRC: 0.20–0.70 & higher
  • Composition - 100% polyester fibre, containing not less than 60% recycled material
  • Thickness: 6mm, 12mm and 24mm (1/4, 1/2” and 1”)
  • Pattern number: EH046LDA
  • Colour: Daydream
  • Horizontal repeat 2400mm (95")
  • Ships as semi-rigid panels measuring 1220 x 2440mm (48 x 96”) and 1200 x 2700mm (48 x 106”)
  • Manufactured with water-based inks
  • Lead time:
    Sample orders - in stock, ready to ship
    Production 4-6 weeks

Sustainablity

  • meets criteria for WELL, LEED, Green Star, and BREEAM building rating systems
  • Carbon neutral product
  • Carbon neutral manufacturing
  • >60% recycled material
  • Low VOC and CDPH compliant <0.092 mg/m3
    (7 days)
  • Zero waste manufacturing initiative
  • Sustainable supply chain and anti-modern slavery
  • EPD – compliant with ISO 14025 and ISO 15804
  • Declare – Red List free (third party verified)
  • ISO 14001 Certified Environmental Management
  • Health Product Declaration
  • CDPH Standard

Fire rating

  • ASTM E-84-15a, Class A, FS:0 - SD:45 for 12mm (1/2”)thickness
  • ISO 9705: 1993, Classification: Group 1-S
  • AS ISO 9705 - 2003, Classification: Group 1

Samples

  • Samples are A5, 6mm (1/4”) thickness

Further information

  • Install as butt join, negative detail or corresponding trims
  • A full data sheet is available on request
  • Custom panel lengths, designs and acoustic products are available on request
  • Not sure how much to order?
    Email us with your wall dimensions and we’ll create a visual and quote
  • autexacoustics.co.nz

Image Credits

Styled with Otto Vase from Citta, Element Lotus Side Table, and  Kennedy Tenner Occasional Chair from Soren Liv, Rug from Mulberi. Styling Sam van Kan, Photos Dean Foster.
